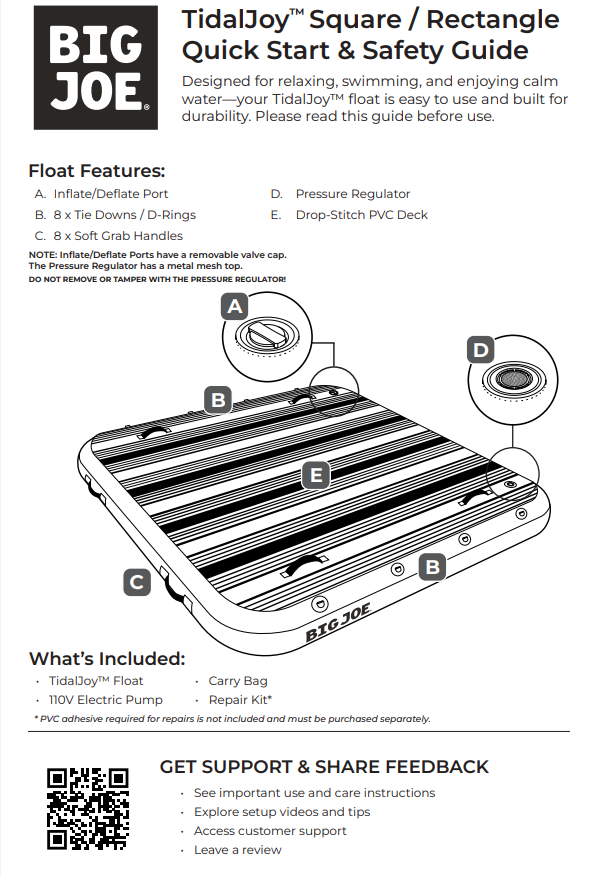

TidalJoy Use Guide for Square & Rectangle

Tidal Joy – Setup & Deflation Guide

Inflation

1. Lay out the float
   Place the float on a flat, clean surface.
2. Remove the valve cap from the inflate/deflate port by twisting the cap to the left.
3. Ensure the valve pin is popped up. If itis not, push down on the pin and twist. This seals the inflation port.
4. Insert the pump hose to the inflation/deflation port. Twist the hose to the right to lock in place.
5. Attach the hose to the pump's INFLATE side by sliding on and twisting it in place. Inflate until firm. No need to worry about over-inflating--the pressure regulator will activate and slowly release air if max capacity is reached.
6. Remove the hose. Twist to the left to remove it from the inflation port. The valve pin should stay up to keep the air in the float.
7. Put the valve cap on. Ensure there is no water or debris in the port before securing the cap.

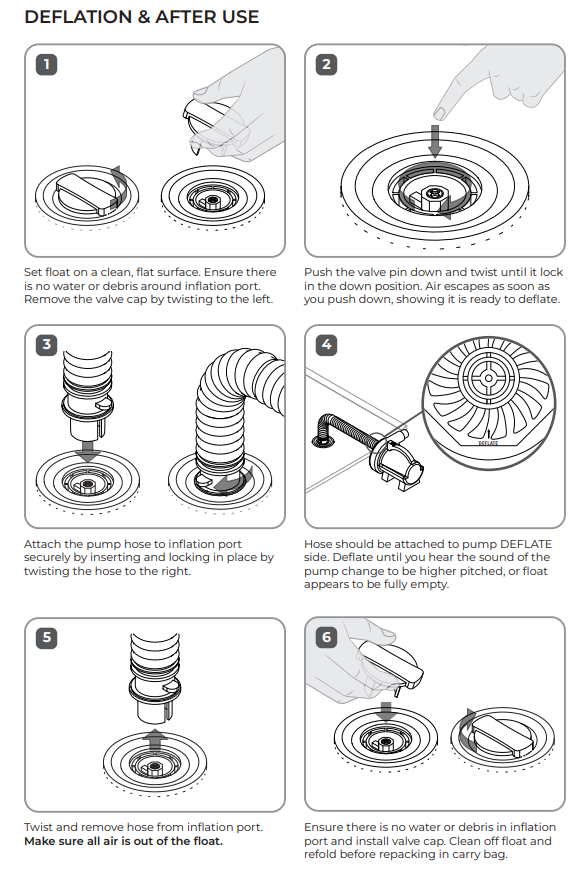

Deflation

1. Set the float on a clean, flat surface. Ensure there is no water or debris around the inflation port. Twist the valve cap to the left to remove.
2. Push the valve pin down and twist until it locks in the down position. Air escapes as soon as you push down to indicate it is ready to deflate.
3. Insert the pump hose to the inflation/deflation port. Twist the hose to the right to lock in place.
4. Attach the hose to the DEFLATE side of the pump. Deflate until you hear the sound of the pump change to a higher pitch, or until the float appears fully empty.
5. Remove the hose. Twist to the left to remove it from port. Make sure all of the air is out of the float.
6. Put the valve cap on. Ensure there is no water or debris in the port before securing the cap.
